High Temperature Vacuum Oven for Environmental Test Chamber | Precision Thermal Vacuum Drying Equipment

브랜드 이름:	Hejin
모델 번호:	HJ-EMTC-018
모크:	1세트
가격:	Negotiatable
지불 조건:	신용장, 티/티
공급 능력:	달 당 10 세트

자세한 정보

제품 설명

평가 및 리뷰

자세한 정보

원래 장소:

중국

인증:

Third party calibration certificate(cost additional)

온도 조절기:

PID 디지털 디스플레이 장비

감지선:

K형

산출:

3-32V

온도 범위:

+30~200℃

제어 정확도:

±0.5℃

정확도를 표시합니다:

0.1℃

전원공급장치:

220V/50HZ

힘:

5KW

포장 세부 사항:

합판

강조하다:

high temperature vacuum oven

precision thermal drying equipment

environmental test chamber with warranty

제품 설명

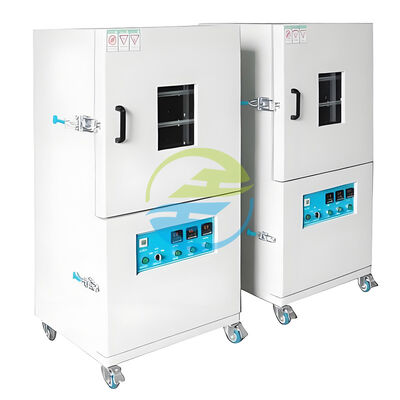

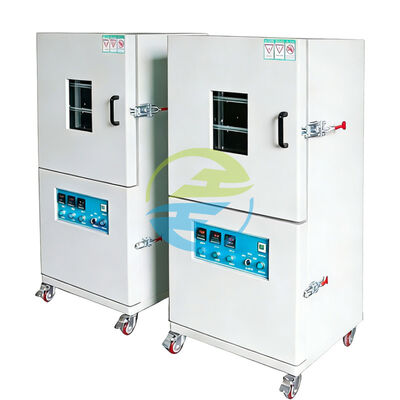

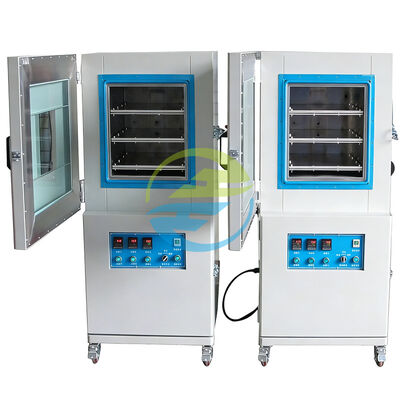

High Temperature Vacuum Oven for Environmental Test Chamber

Precision Thermal Vacuum Drying Equipment designed for vacuum drying, heat treatment, and thermal stability testing under high temperature conditions. This system operates under reduced pressure, allowing effective heat penetration while minimizing oxidation, contamination, and structural damage.

Product Features

Stable Vacuum Environment: Maintains consistent vacuum levels to accelerate moisture evaporation and material degassing, improving drying efficiency and product quality
Uniform High Temperature Heating: Advanced heating elements and optimized airflow design ensure even temperature distribution throughout the chamber
Precision Temperature Control: Digital PID temperature controller provides highly accurate control and stable heating performance
High Strength Stainless Steel Chamber: Corrosion-resistant stainless steel interior ensures long-term durability and contamination-free testing
Excellent Sealing System: Reinforced sealing structure prevents vacuum leakage and guarantees stable operation during extended test cycles

International Reference Standards

IEC 60068-2-2 Environmental testing – Dry heat test method
IEC 60068-2-14 Environmental testing – Temperature change testing procedures
ISO 16750-4 Road vehicles – Environmental conditions and testing for electrical and electronic equipment – Climatic loads
ASTM D4332 Conditioning containers and packaging components for testing

Technical Parameters

Item	Parameters
Internal Dimensions	400 (W) x 400 (D) x 400 (H) mm (Single Box Type)
External Dimensions	700 (W) x 630 (D) x 1320 (H) mm + 110mm wheel height, subject to actual product
Box Structure	One-piece structure
Viewing Window Specifications	W200H250mm
Inner Box Material	304# Stainless Steel Plate, Thickness 3.0mm
Outer Material	Cold Rolled Steel Plate, Thickness 1.0mm, Powder Coating (Off-White)
Insulation Material	High-Temperature Resistant Rock Wool, Excellent Insulation Performance
Casters	Equipped with braked swivel casters for easy movement

For additional technical parameters, please consult our sales representative

Applications

The High Temperature Vacuum Oven is widely used in industries where precise thermal processing and moisture removal are critical, including electronics manufacturing, automotive parts testing, and semiconductor research.

Testing Objects

Electronic components
Lithium battery materials
Automotive parts
Semiconductor wafers
Polymer materials

Frequently Asked Questions

What is the advantage of a vacuum oven compared with a normal drying oven?
A vacuum oven lowers the boiling point of liquids, allowing materials to dry faster and at lower temperatures while preventing oxidation and contamination.
Can the temperature range be customized?
Yes. HeJin supports customized temperature ranges depending on testing requirements.
What industries commonly use this equipment?
It is widely used in electronics manufacturing, lithium battery production, automotive parts testing, semiconductor research, and laboratories.
Is the chamber size customizable?
Yes, chamber volume and structure can be customized based on sample size and testing conditions.
Does the equipment include a vacuum pump?
The vacuum oven includes a vacuum interface. Vacuum pumps can be configured according to user requirements.
