| 브랜드 이름: | HJ |
| 모델 번호: | HT-U16 |
| 모크: | 1세트 |
| 가격: | Negotiatable |
| 지불 조건: | T/T,L/C |
| 공급 능력: | 20 세트 / 월 |
25mm Conical Test Finger Probe Handle – Precision Safety Testing Tool for IEC & EN Compliance
Product Introduction:
At He Jin, we understand that every test represents a promise — a promise of safety, quality, and trust. The 25mm Conical Test Finger Probe Handle embodies that commitment. Designed and manufactured by our professional R&D team, it accurately simulates a human finger’s shape and size to test the accessibility of live parts and hazardous mechanical components in electrical appliances and equipment.
Its robust stainless-steel probe and ergonomic insulated handle make it easy to operate while ensuring long-term durability and repeatable accuracy. Whether you are a testing lab, a certification body, or an industrial manufacturer, this test finger probe is the essential tool to ensure compliance with international safety standards.
Product Features:
International Standards:
| Standard | Clause / Figure | Description |
|---|---|---|
| IEC 61032 | Figure 16 | Test probe for protection against access to hazardous parts |
| IEC 60529 | IP Code | Protection degree testing against access to live parts |
| EN 61032 | Figure 16 | European equivalent test probe specification |
| GB 16842 | Figure 16 | Chinese national standard equivalent |
| UL 507 | Section 9 | Safety of electrical appliances and access probes |
| IEC 60335-1 | Annex B | Test for household and similar electrical appliances |
| IEC 60950 / IEC 62368-1 | – | Information technology and AV equipment safety testing |
Applications:
Technical Specifications:
| Item | Parameter |
|---|---|
| Probe Type | 25mm Conical Test Finger Probe Handle |
| Reference Standard | IEC 61032 Figure 16 |
| Probe Material | Stainless Steel |
| Handle Material | Insulated Nylon or POM |
| Tip Diameter | 25 mm ± 0.05 mm |
| Probe Length | 100 mm ± 0.2 mm |
| Total Length (with handle) | 130 mm ± 0.5 mm |
Testing Objects & Capabilities
Testing Objects:
Detectable Items:

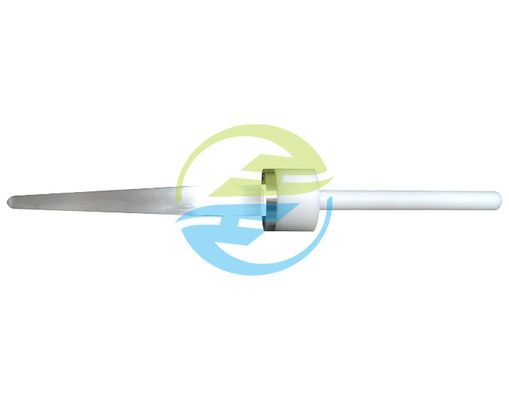

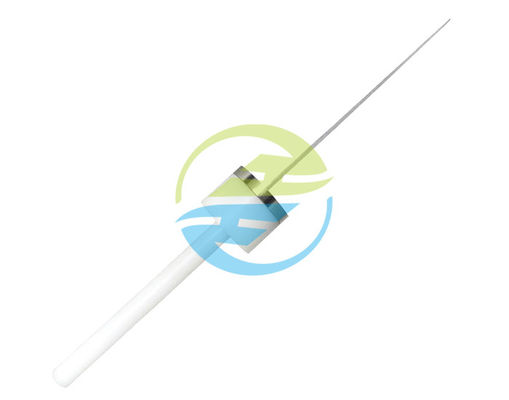

Detailed images:
